Triple Offset Butterfly Valves

Aironex Triple Offset Butterfly Valves – engineered for zero leakage, built for extreme performance.

Download Brochure

Brochure.pdf

Shop Our Triple Offset Butterfly Valves

Aironex is a reliable manufacturer of Triple Offset Butterfly Valves, specially designed for Challenging industrial conditions. These valves offer excellent sealing with zero leakage, even in high-pressure and high-temperature conditions. Thanks to their triple offset design, they reduce friction, last longer, and work smoothly over time. Made with strong materials and smart engineering, Aironex valves are perfect for industries like oil and gas, power plants, chemical processing, and marine systems. If you need valves that perform well and stay dependable, Aironex is the name to trust.

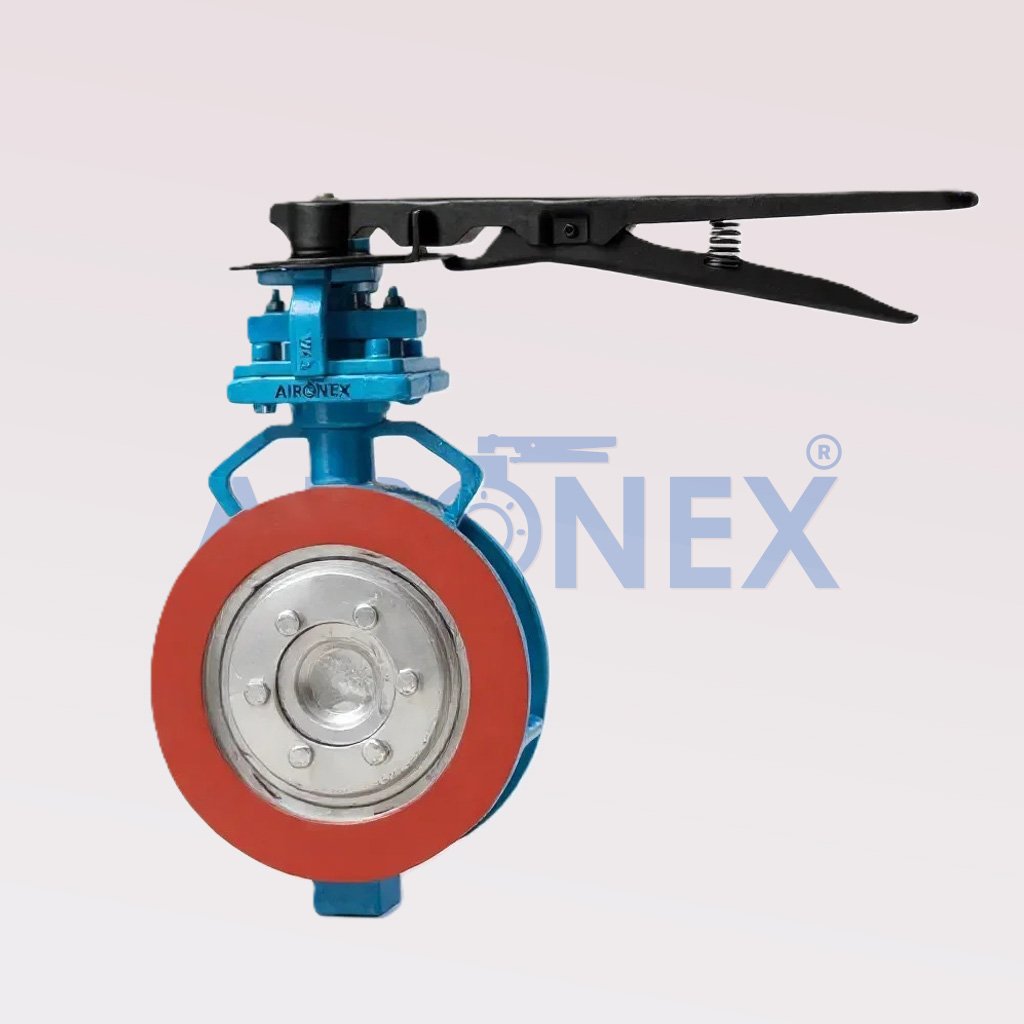

Lever Operated Triple Offset Butterfly Valve

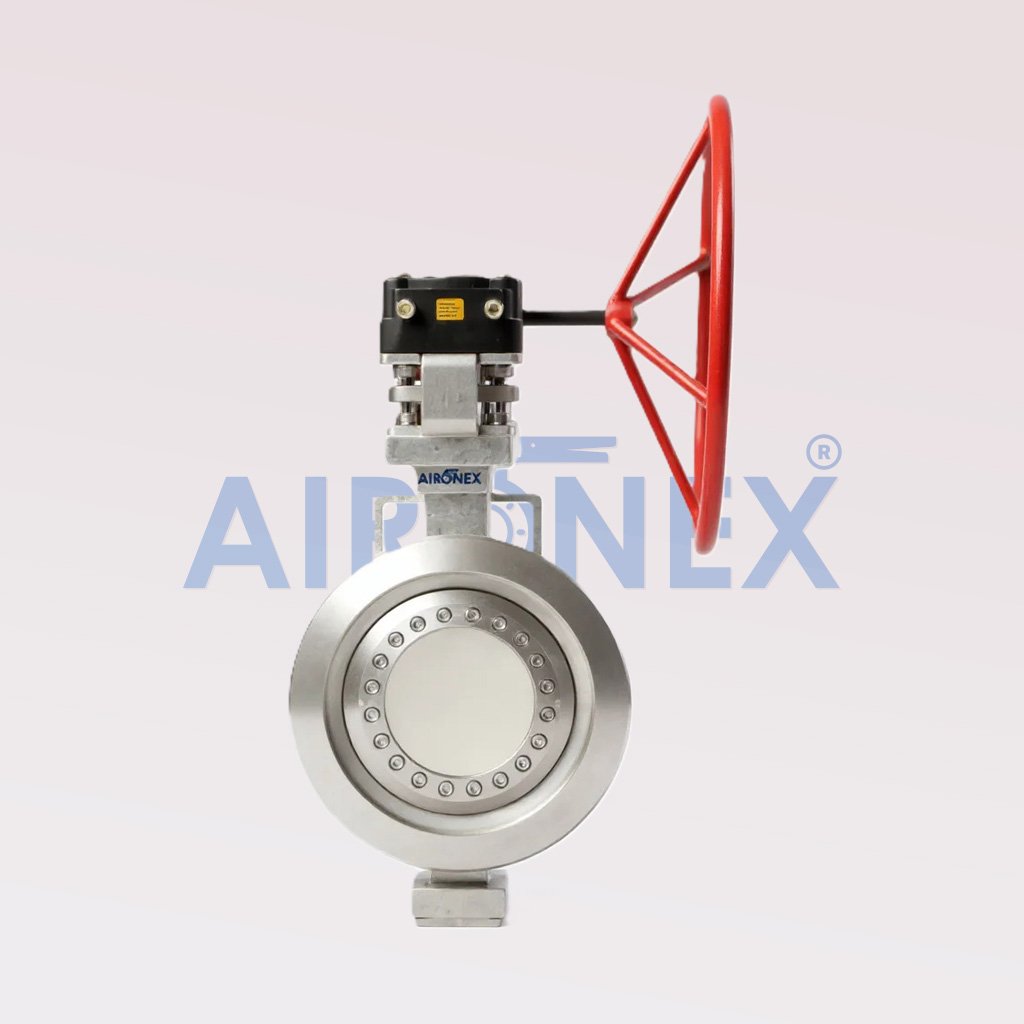

Gear Operated Triple Offset Butterfly Valve

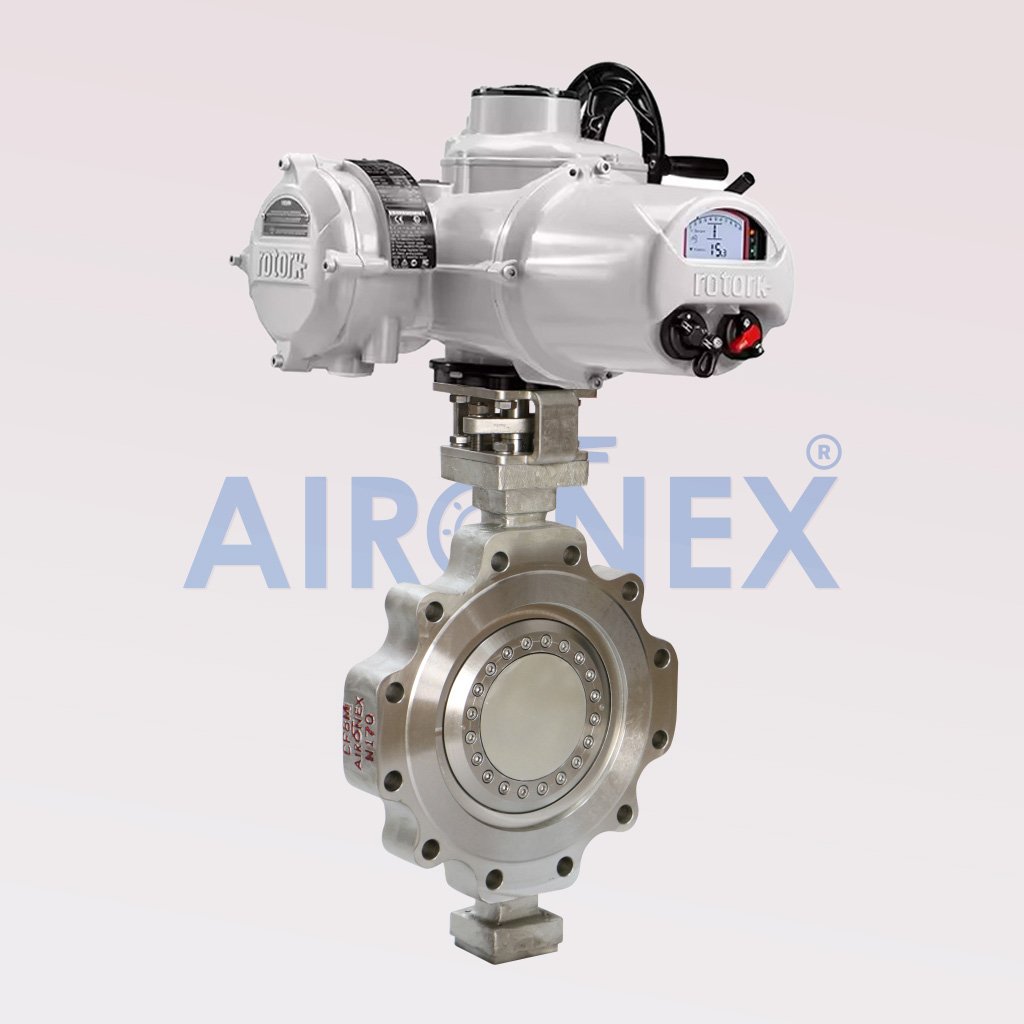

Electric Operated Triple Offset Butterfly Valve

Pneumatic Operated Triple Offset Butterfly Valve

Technical Details
Special Features
  • The design complies with API 609
  • Blowout-proof Shaft
  • Range of Short-pattern and Long-pattern valves
  • Tight sealing and low operating torque
  • Design Validation Test for various valves successfully completed 10,000 cycles
  • Elastomer Seals – Black/White Nitrile, Black/White EPDM, Viton, and Silicon
  • Fire-Safe Design for Offset Valves
  • Actuator mounting pads to ISO 5211
Design Standards EN 593 and API 609 Cat A & B
End Flanges ASME B16.5, AWWA
Face to Face API 609, ISO 5752, BS EN593
Testing Standard API 598
End Connections
  • Wafer and Lugged
  • Raised Face Flange (ASME B16.5, EN 1092-1)
Sizes Range
  • CAT A: DN 40 to DN 1200 (1.1/2″ to 48″)
  • CAT B: DN 40 to DN 1200 (1.1/2″ to 48″)
Pressure Rating
  • CAT A Centric Disc: PN10, PN16, PN20
  • CAT B Offset Disc: PN10, PN16, Class 150 to Class 1500
Operations
  • Manual: Bare-shaft, Lever & Gearbox
  • Automation: Electric, Pneumatic, and Hydraulic Actuators
Shutoff Rating Zero Leakage for Soft Seated & Metal Seated as per API 598 or relevant STD.
Material Type Specification
Type of Service Valve Shell Material Pressure Controlling Parts & Stem
General Service Carbon or Low-Alloy Steel Carbon or Low-Alloy Steel
General Service Carbon or Low-Alloy Steel Stainless Steel
General Service Stainless Steel Stainless Steel
Sour Service Carbon or Low-Alloy Steel Carbon or Low-Alloy Steel
Sour Service Carbon or Low-Alloy Steel Stainless Steel
Sour Service Stainless Steel Stainless Steel
Sour Service CRA (Corrosion Resistant Alloy) CRA (Corrosion Resistant Alloy)
